ASIC Miner Method 1 (Online Upgrade of OKMINER Firmware)

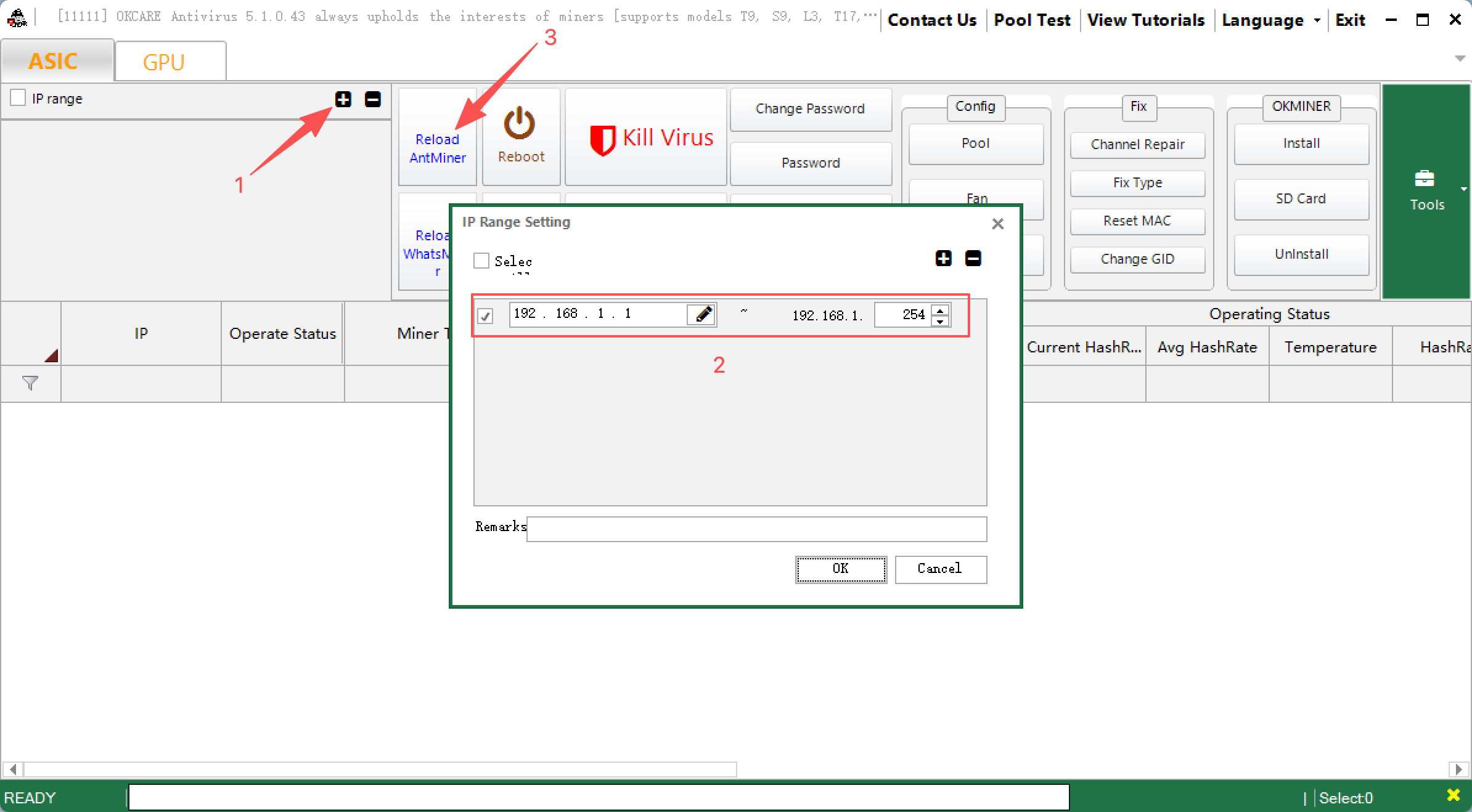

1.After setting the IP range, click Reload

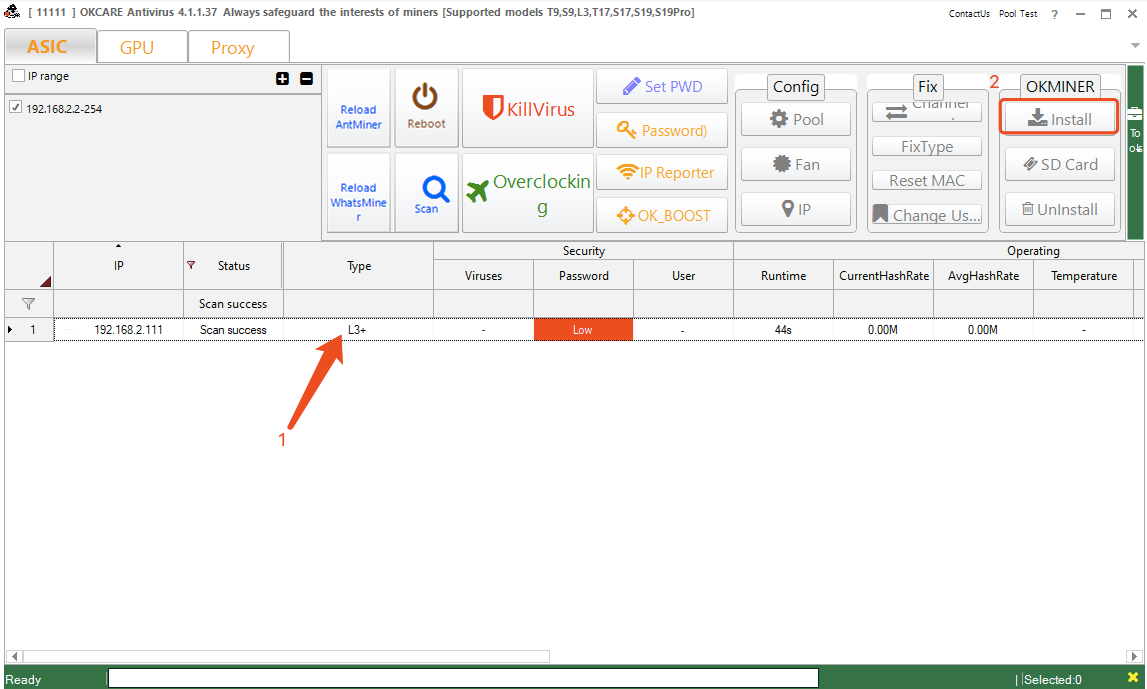

2.Select the miner that needs to be upgraded (multiple miners of the same model can be selected), and click Install

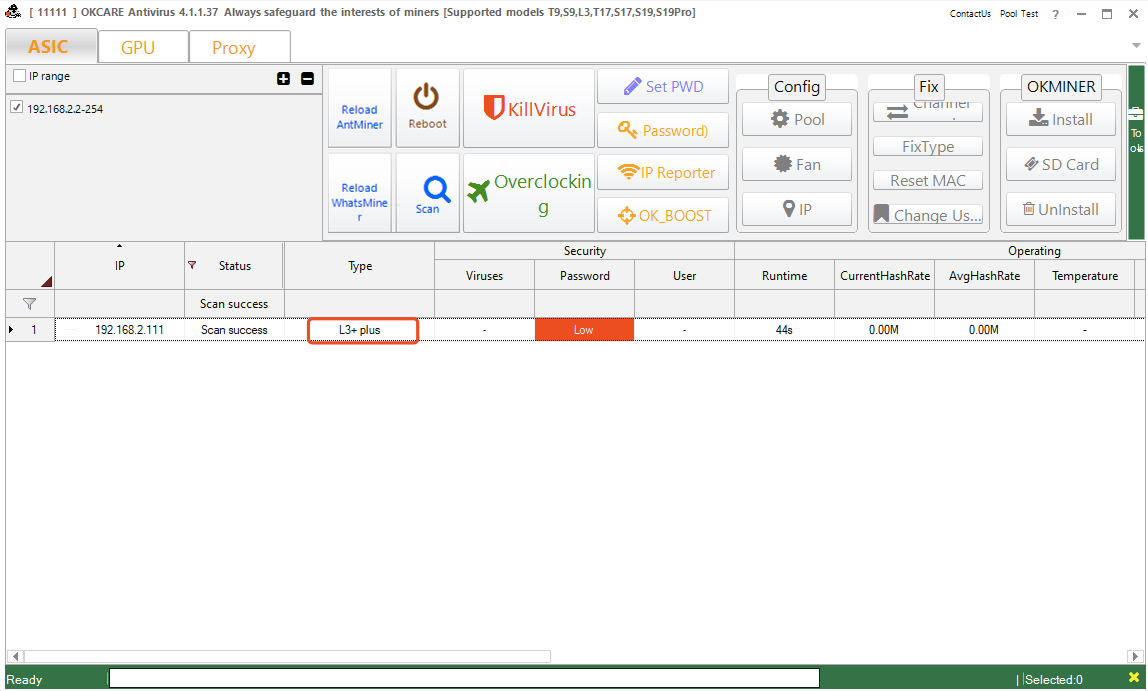

3.After upgrading the OKMINER firmware, the mining model number will be changed to model +plus
4.Change Uesr

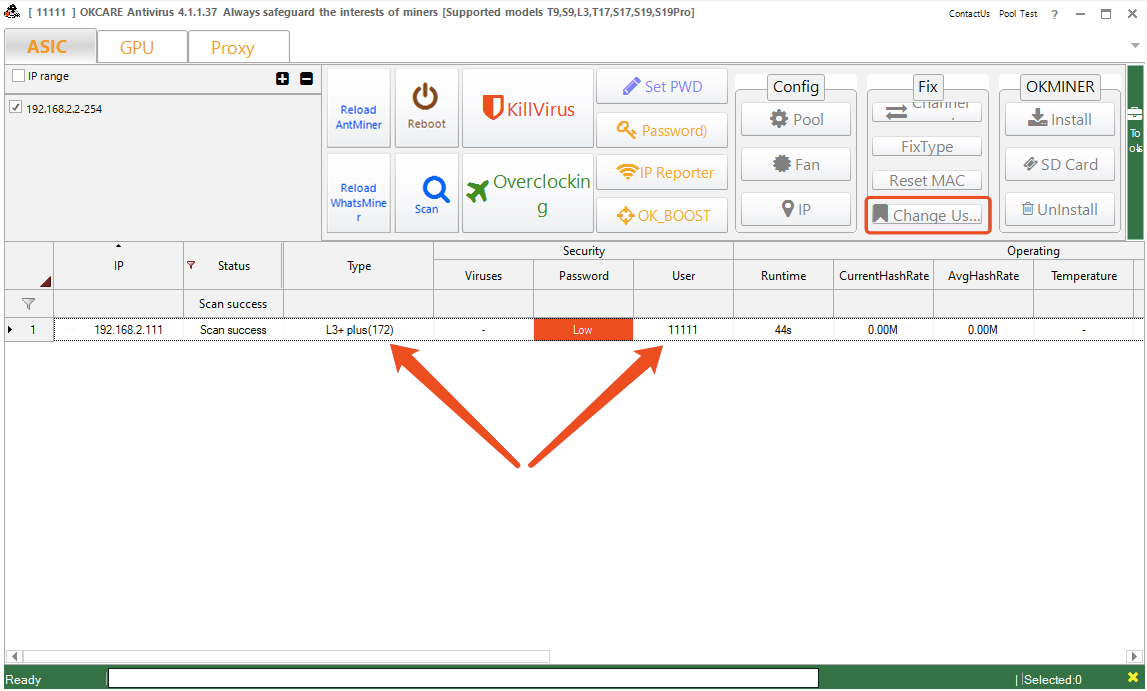

After upgrading the OKMINER firmware, you need to bind the miner to your account, select the miner, and click Change Uesr. After successful binding, the column of "mining Model Number" will show the mining model number +Plus(172). The number in parentheses represents the firmware version, which will be different with the iteration of the firmware. The GID of the binding is displayed in the User column.

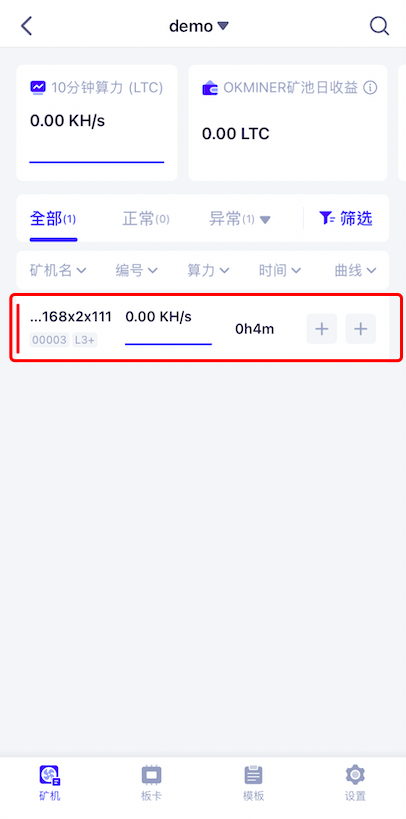

* Once binding is successful, you can view and manage miners remotely on the App
ASIC Miner Method 2 (Card brush OKMINER firmware)

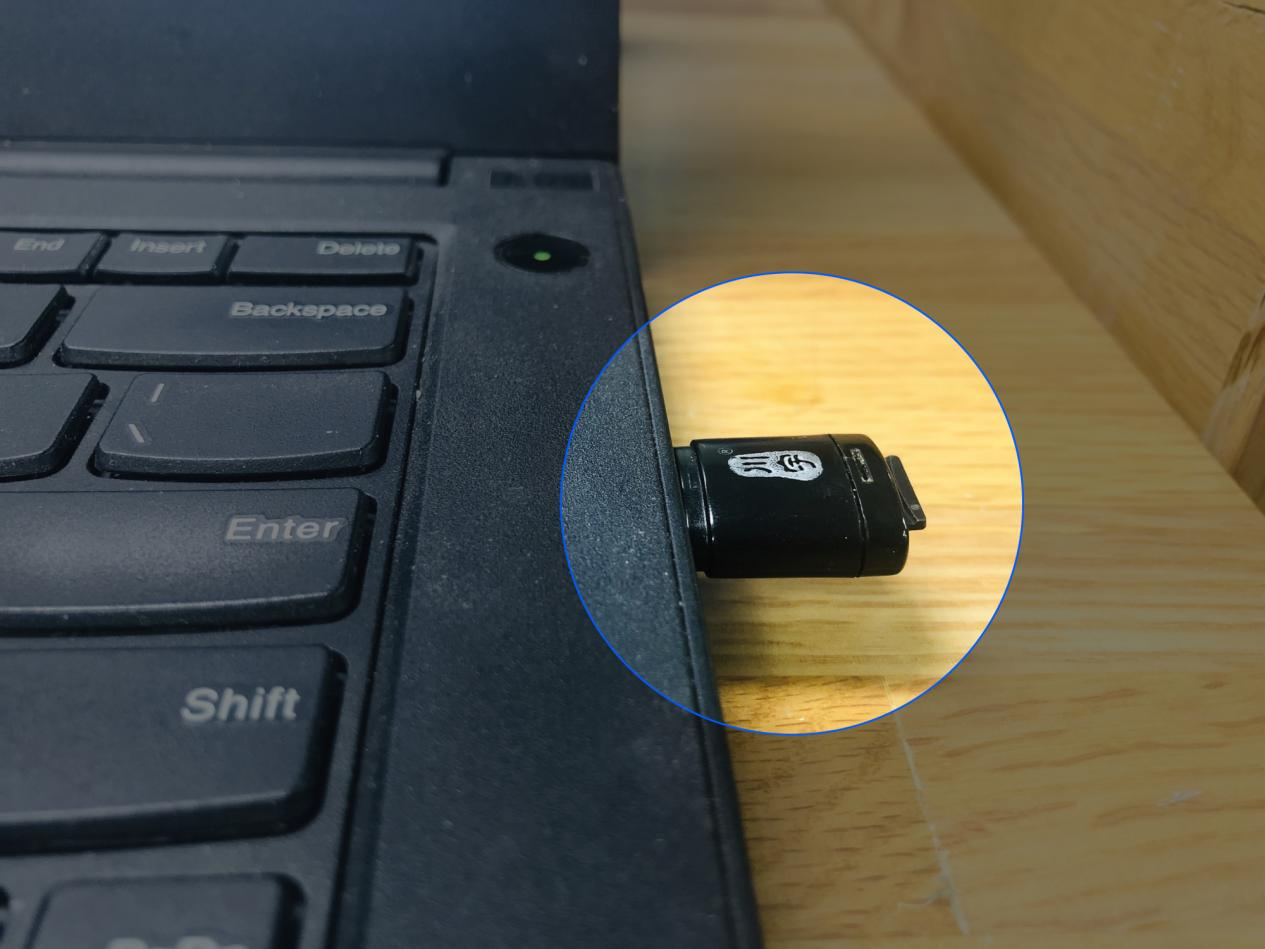

1.First, a more than 4G SD card is loaded into the card reader and inserted into the computer.

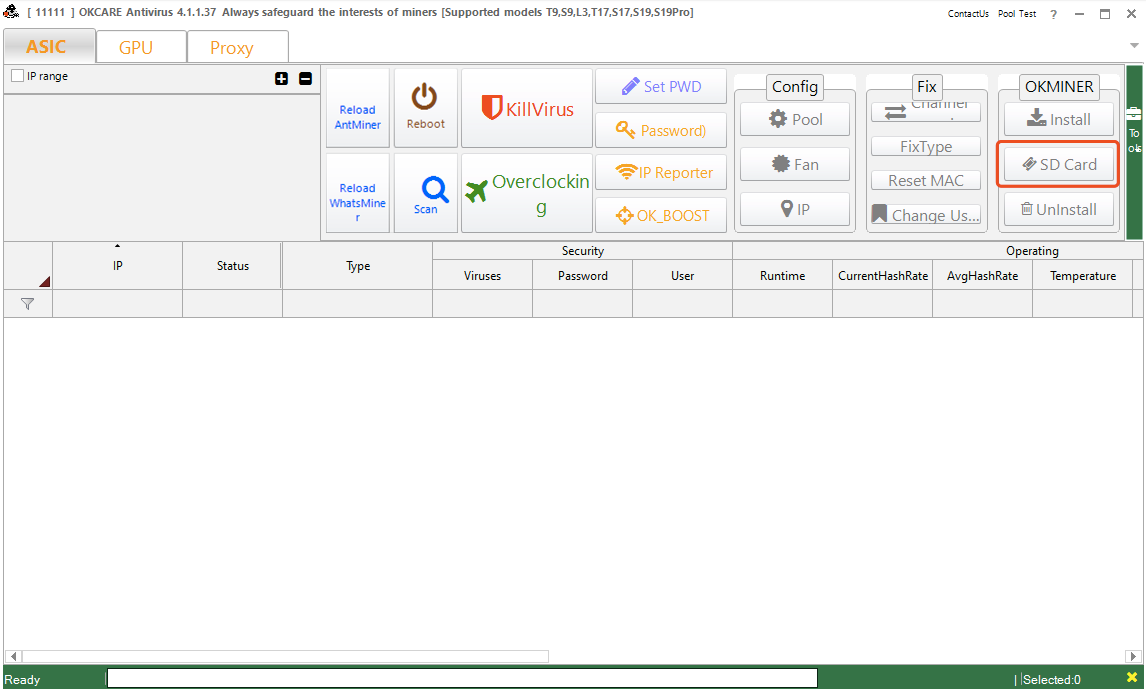

2.Click the SD Card

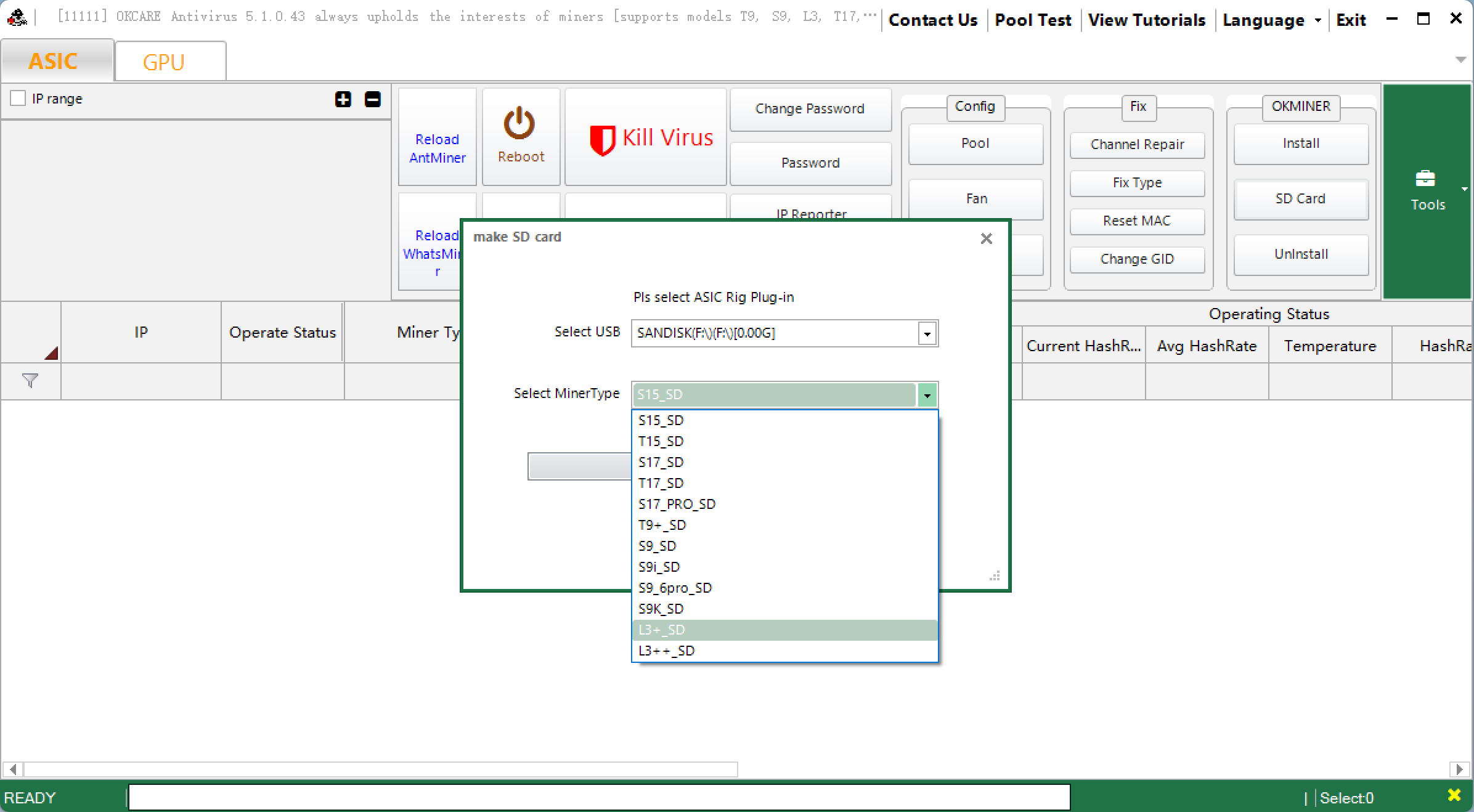

3.Select the SD card just inserted in the U disk, select the corresponding model, and click OK to start copying the firmware

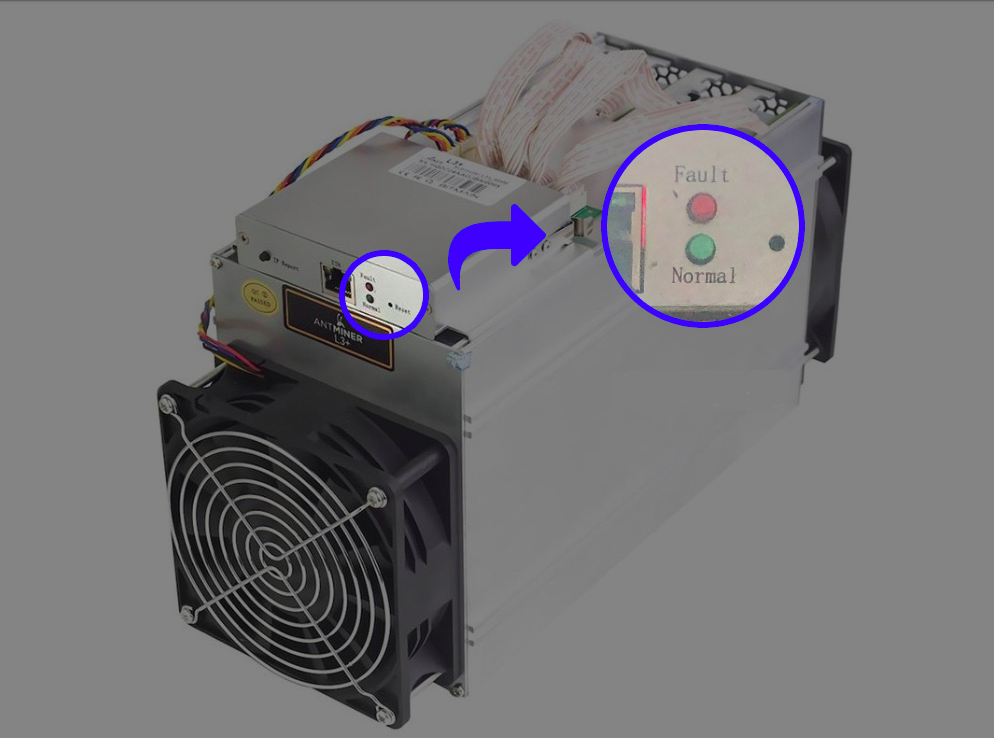

4.After copying the plug-in, insert the SD card into the mining machine, restart the mining machine, wait for about 1 minute, the red light and green light of the mining machine light up at the same time, and then go out at the same time, it means that the plug-in has been copied to the mining machine!
(* Depending on the model number of the miner, some BTC miner cards need to change the position of the control board jumper before starting)
How to flash OKMINER OS to GPU mining machine:
1.Plug in the U disk on the computer, open okcare (OKMINER), select [GPU] in the upper left corner, and click [USB].

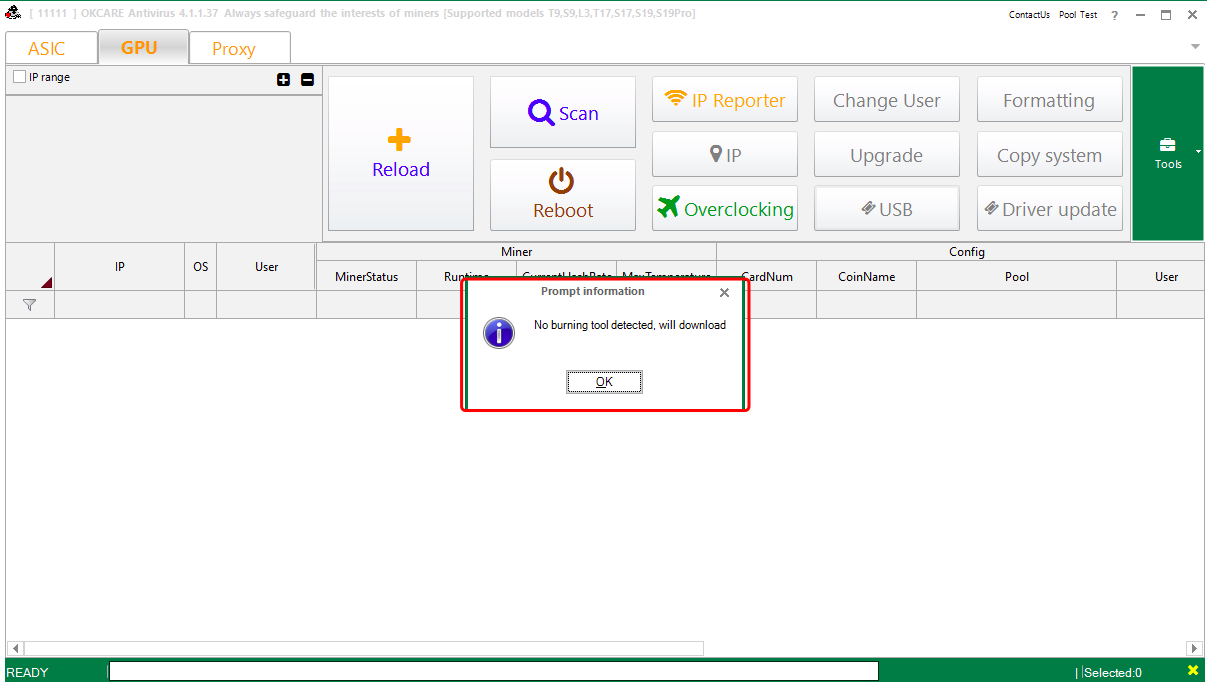

2.Click "USB" and okcare will automatically download the burning tool.

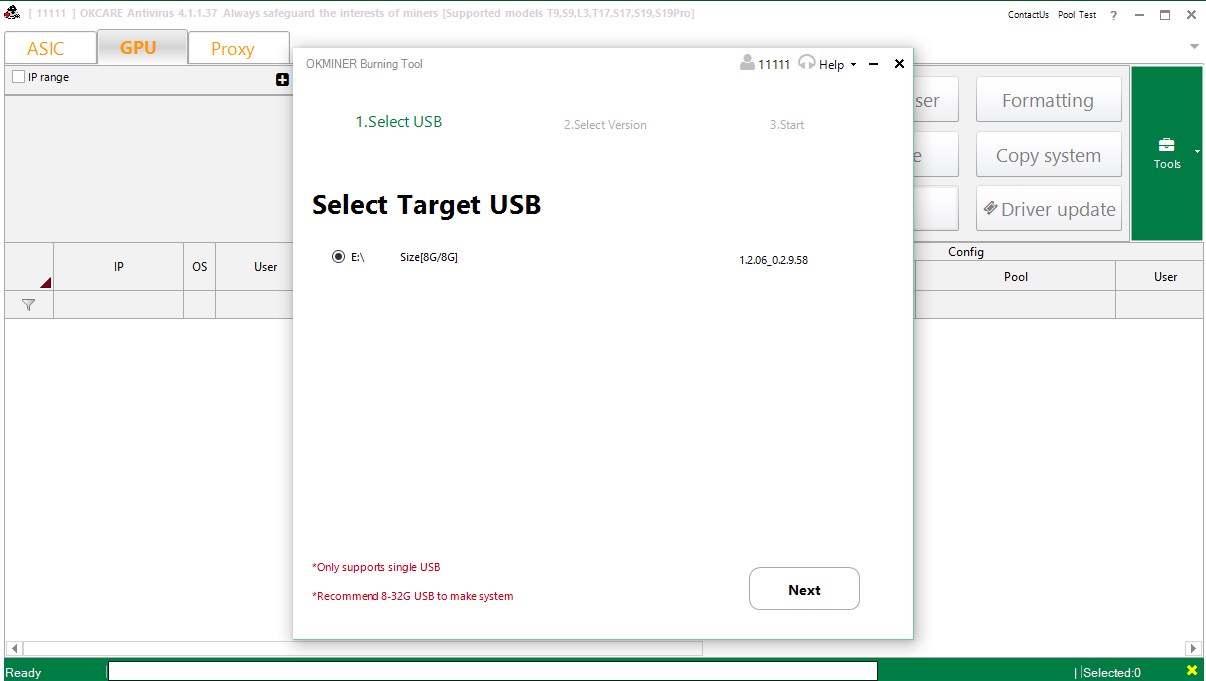

3.After downloading the burning tool, select the U disk that needs to be burned

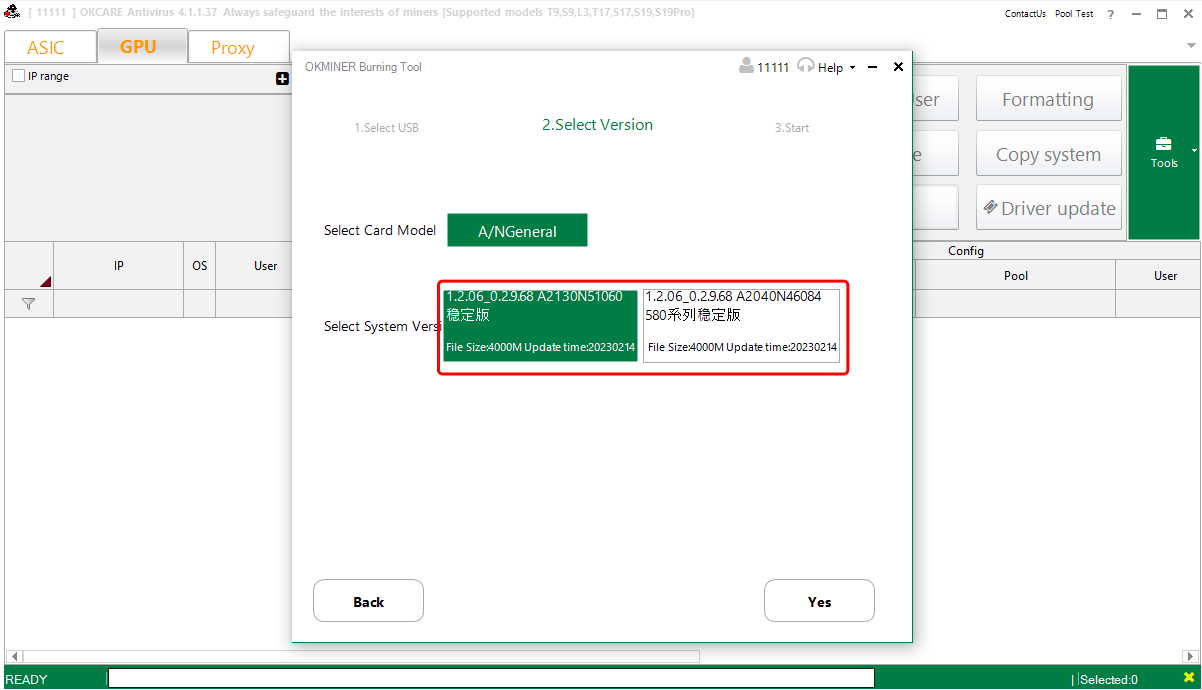

4.choose the need to burn system version (RX470 / RX480 / RX570 / RX580 RX590/3060 m / 3070 m to choose the right version, the rest of the video card type all choose the version on the left)
5.Complete burning
6.Set up the GPU mining rig to boot from a USB drive.

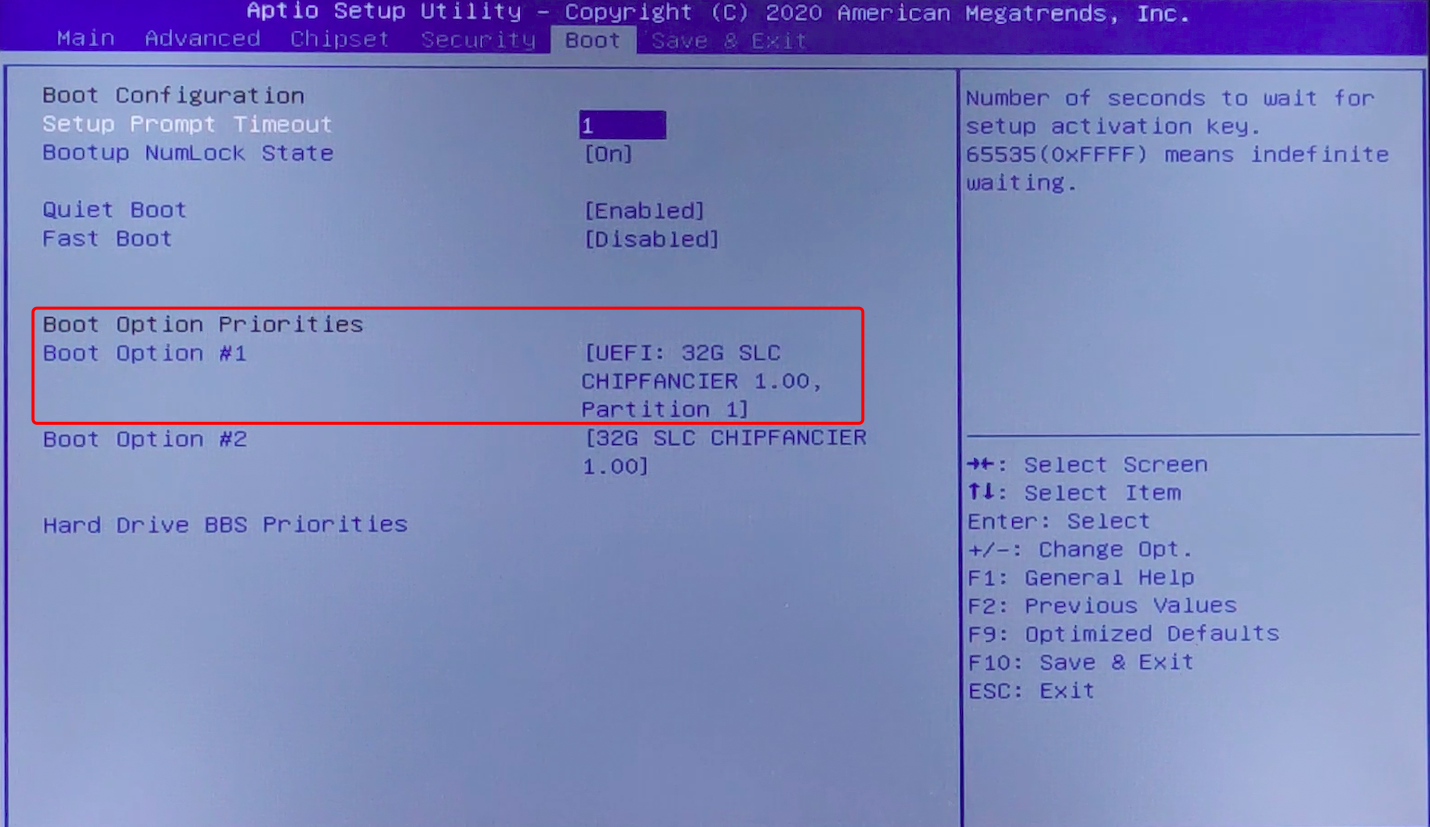

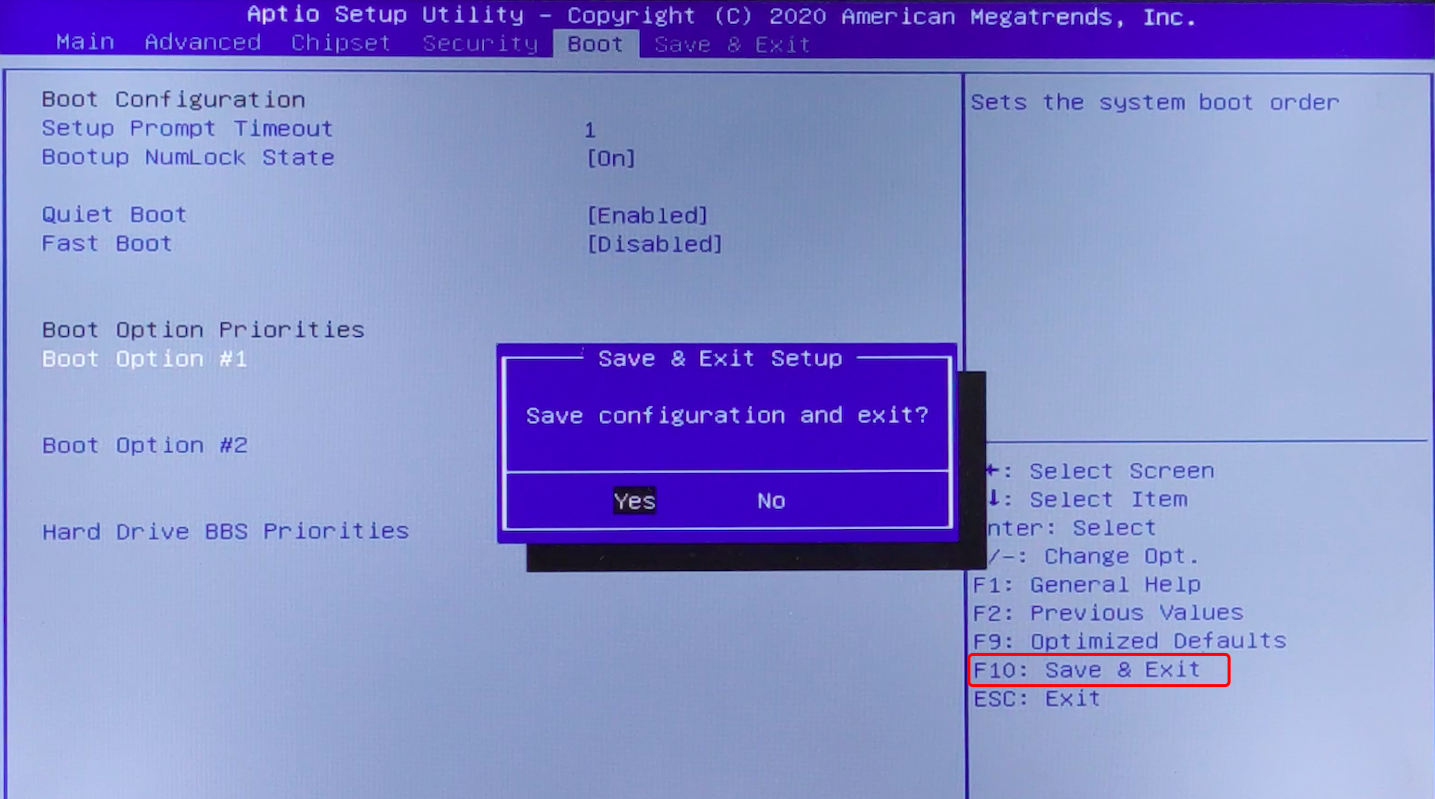

the U disk is inserted into the graphics card miner, open the graphics card miner power, enter the motherboard bios Settings (usually press F2/Delete), and then select the boot interface, select the U disk to start.
After the setup, press F10 to save the Settings and restart the miner.

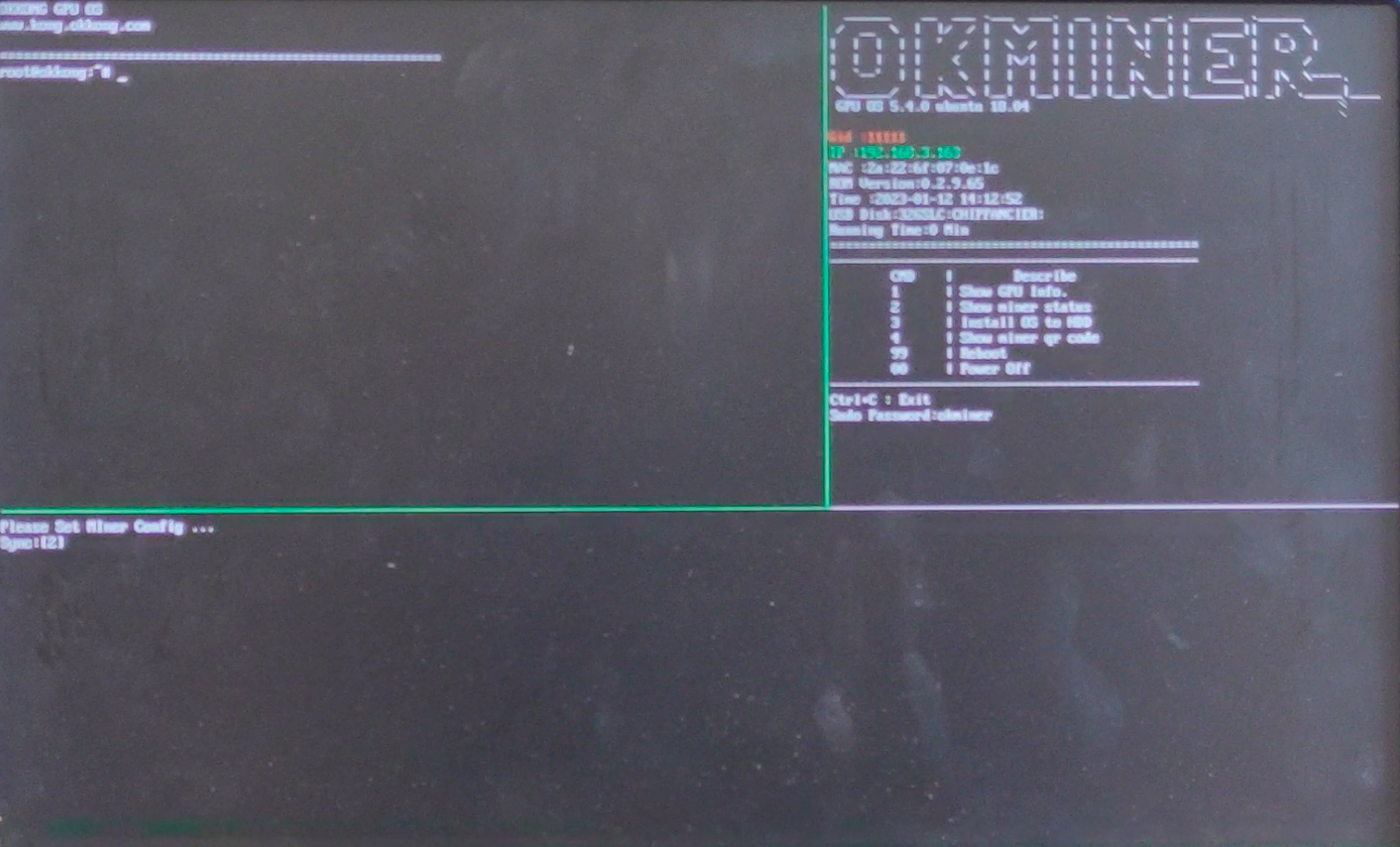

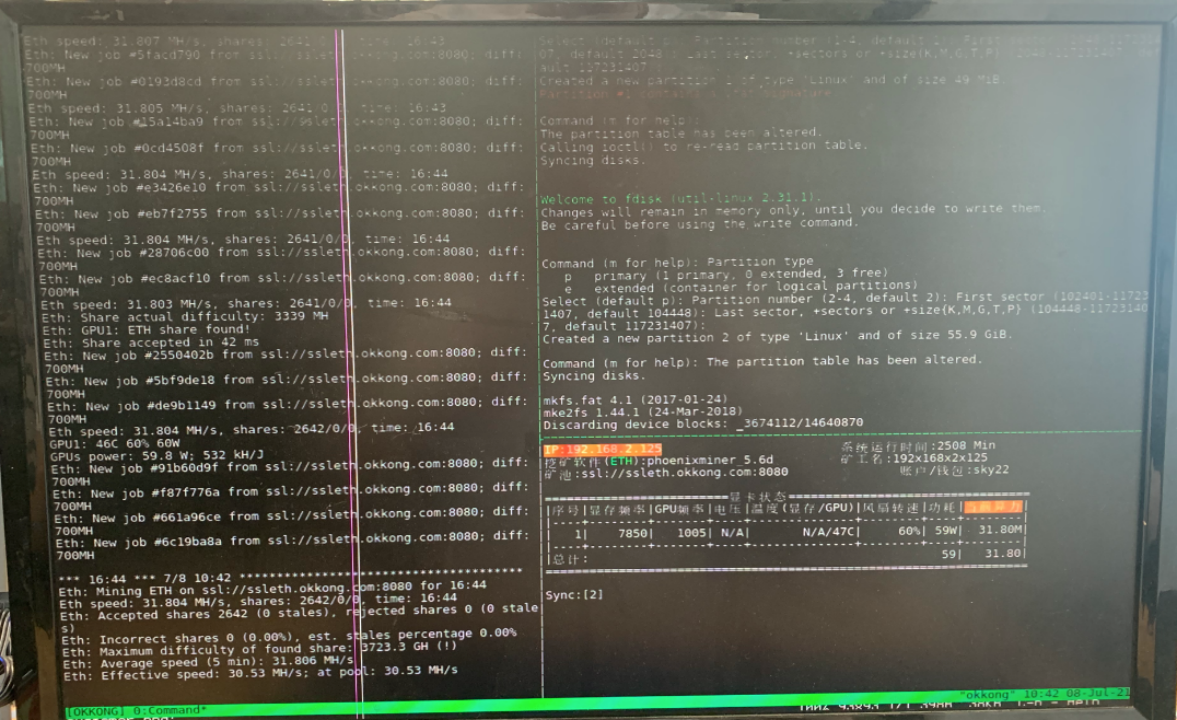

The interface of the system after normal startup is as follows
7. Copy the OS from the USB drive to the hard drive (skip this step if the mining rig doesn't have a hard drive).
After entering the OKMINER system interface, enter [3] and press Enter 3 times in succession to start the installation

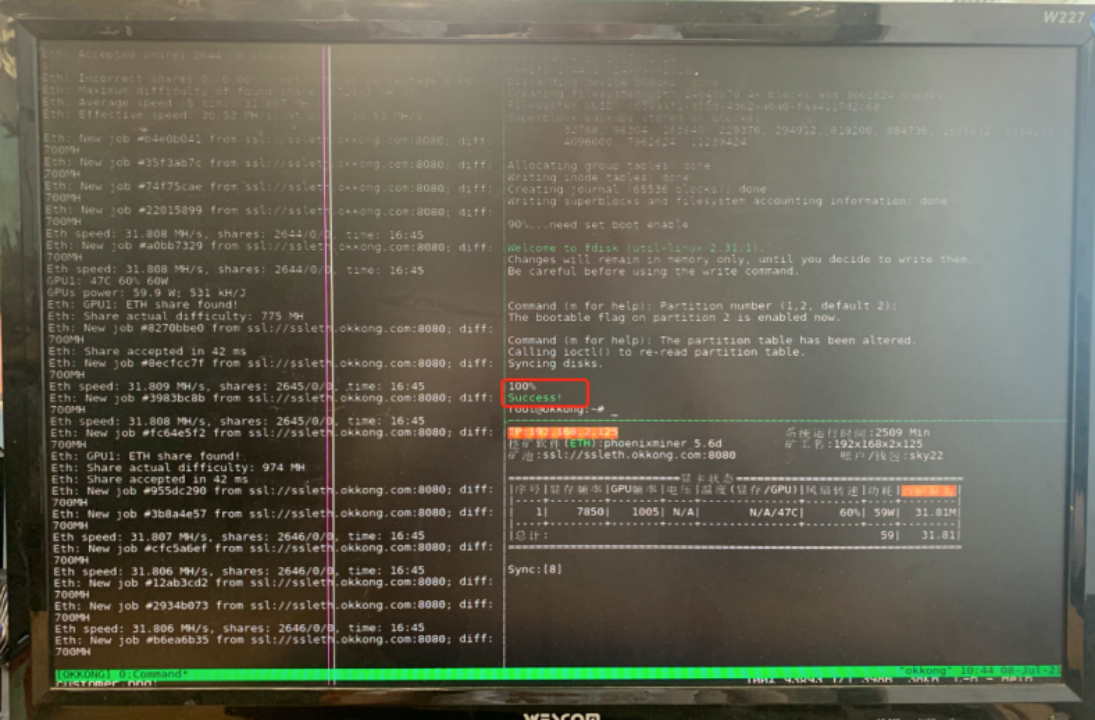

After the installation is successful, unplug the U disk and restart the machine to confirm that the system can start normally
